Athena
Integrated intrinsically safe barrier (8 tanks)
Marking ATEX: TÜV IT 24 ATEX 0231 X
II (1)G [Ex ia Ga] IIB
- Product Overview
Stock Management Console

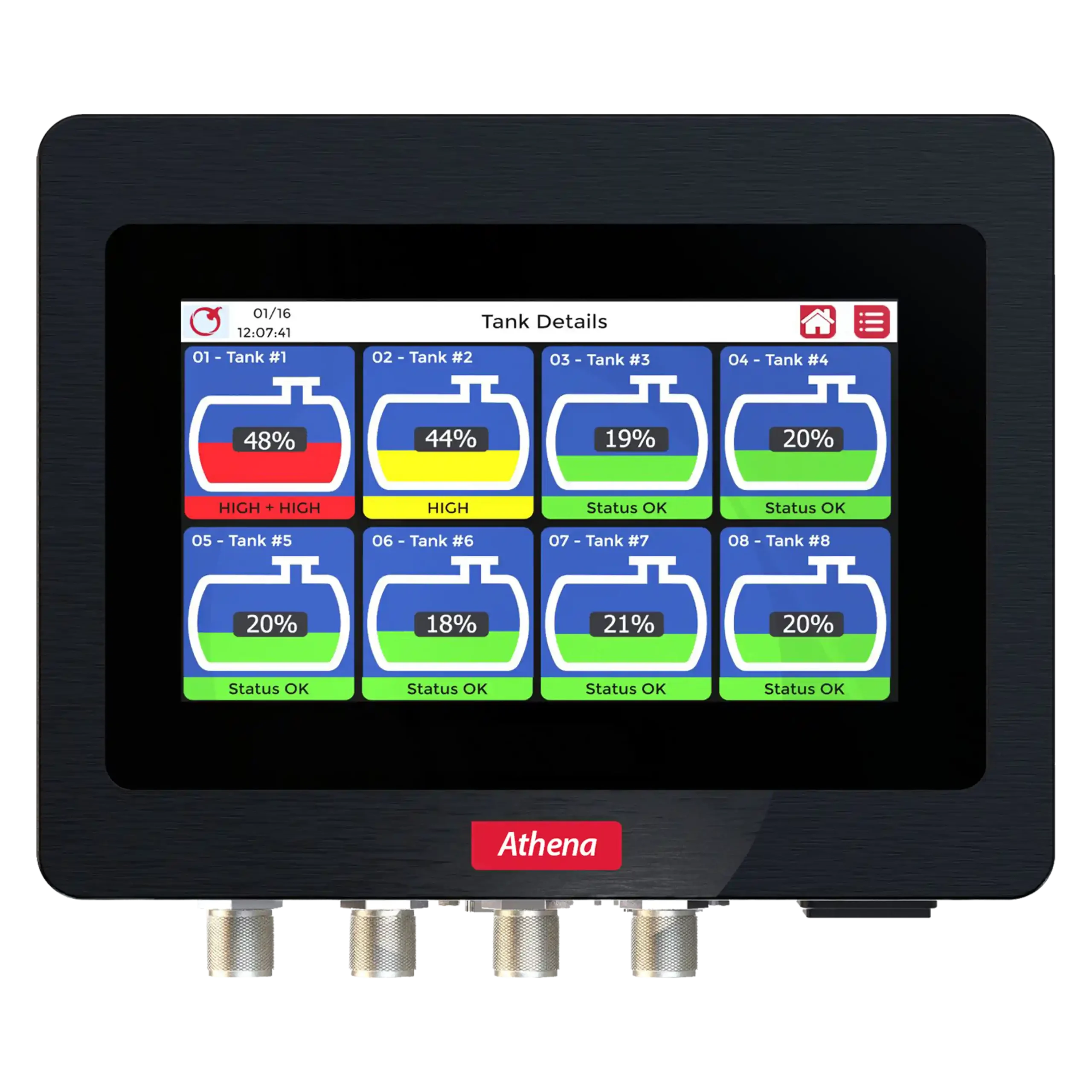

ATHENA is a compact and reliable stock management console designed to control up to 16 tanks with precision and efficiency. Powered by a Cortex ARM-M4 processor and equipped with a 7” TFT touchscreen display, it provides real-time monitoring of product level, water presence, volume, temperature, and ullage. With automatic recording of deliveries, trends, events, and alarms, plus web connectivity for remote configuration, ATHENA ensures complete operational control within a robust and scalable system architecture.
- Console Data
General Specifications
Web connection capability for remote monitoring and configuration.
Barriera a sicurezza intrinseca integrata (8 serbatoi)
Marking ATEX: TÜV IT 24 ATEX 0231 X
II (1)G [Ex ia Ga] IIB
Key Features
• Stock management console for up to 16 tanks
• Cortex ARM-M4 CPU microprocessor
• Interfaces with Gilbarco commands
• Delivery detection
Electrical Features
• Power supply: 100–230 Vac
• RS485 Fieldbus wiring
• 4 programmable SPDT alarm outputs, 125 Vac
• 2 RS232 ports for POS and/or serial printer
• 1 USB port
• 1 Ethernet port
Main features
• Large 7” TFT color touchscreen graphic display
• IP41 protection-rated enclosure
• Records deliveries, trends, events, and alarms
The display shows:
• Product level / mm
• Water presence detection
• Actual volume and temperature-compensated volume at 15 °C in liters
• Average product temperature in the tank
• Ullage volume in liters
- Accessories
Accessories for ATHENA
Marking ATEX: TÜV IT 24 ATEX 0209 X
II (1)G [Ex ia Ga] IIB
Safe Link
Active intrinsically safe barrier for Zone 0.
• Intrinsically safe galvanic isolation barrier, suitable for powering bus circuits in Zone 0 (1G)
• Circuit protection and current line stabilization
• Supports connection of up to 8 probes per barrier
• Power supply: 12 V (±10%)
• RS485/RS232 communication interface
Marking ATEX: TÜV IT 24 ATEX 0231 X
II (1)G [Ex ia Ga] IIB
Safe Pass
Passive intrinsically safe barrier for Zone 0.
• Intrinsically safe barrier suitable for powering probes installed in Zone 0 (1G)
• Supports connection of up to 8 probes per barrier
• Power supply: 12 V (max 15.0 V)
Marking ATEX: TÜV IT 24 ATEX 0231 X
II (1)G [Ex ia Ga] IIB
EOS
• Wall-mounted printer
• Connectivity via RS232 or USB port
• High-speed printing, 200 dpi
• Paper width: 58 mm – roll Ø 50 mm
• Power supply: 220 Vac
• Internal memory: 4 MB
. Font internazionali disponibili
. Sensori di temperatura testina e presenza carta
. Conformità UL CE FCC
. Ampio intervallo di temperatura: -20 ÷ +70 °C
- Compare models
Features
- Max Tanks
Hardware
- Display
- Passive barrier (8 ch)
- 8 I/O sensors
- Relay
- exp board up to 32
- LAN connection
- RS232 interfaces
- USB connection
Software
- Deliveries
- Leakages
- Gilbarco interface
- Reconciliation
- Autocalibration
- Shifts
- Email notification
- USB/RS-232 printing
- 500 strap table point
- Dispensers mngmt.
- Backup/restore
- Remote update
- Web interface
- Bridge connection to Evo/Athena/Helios
Sybilla
- 36
HW
- 7"
- 4
- 2
SW
Athena
- 16
HW
- 7"
- 4
- 2
SW
Helios
- 8
HW
- 4.3"
- 4
- 1
SW
Mars
- 8
HW
- 3.5"
- 4
- 1
SW
- only: s501, i101, i201
- 200 strap table point
- Specifications
Features
- Max Tanks
Hardware
- Display
- Passive barrier (8 channels)
- 8 I/O sensors
- Relay
- exp board up to 32
- LAN connection
- RS232 interfaces
- USB connection
Software
- Deliveries
- Leakages
- Gilbarco interface
- Reconciliation
- Autocalibration
- Shifts
- Email notification
- USB/RS-232 printing
- 500 strap table point
- Dispensers management
- Backup/restore
- Remote update
- Web interface
- Bridge connection to Evo/Athena/Helios
Sybilla Evo
- 36
HW
- 7"
- 4
- 2
SW
Athena
- 16
HW
- 7"
- 4
- 2
SW
Helios
- 8
HW
- 4.3"
- 2
- 1
SW
Mars
- 8
HW
- 3.5"
- 4
- 1
SW
- only: s501, i101, i201
- 200 strap table point
