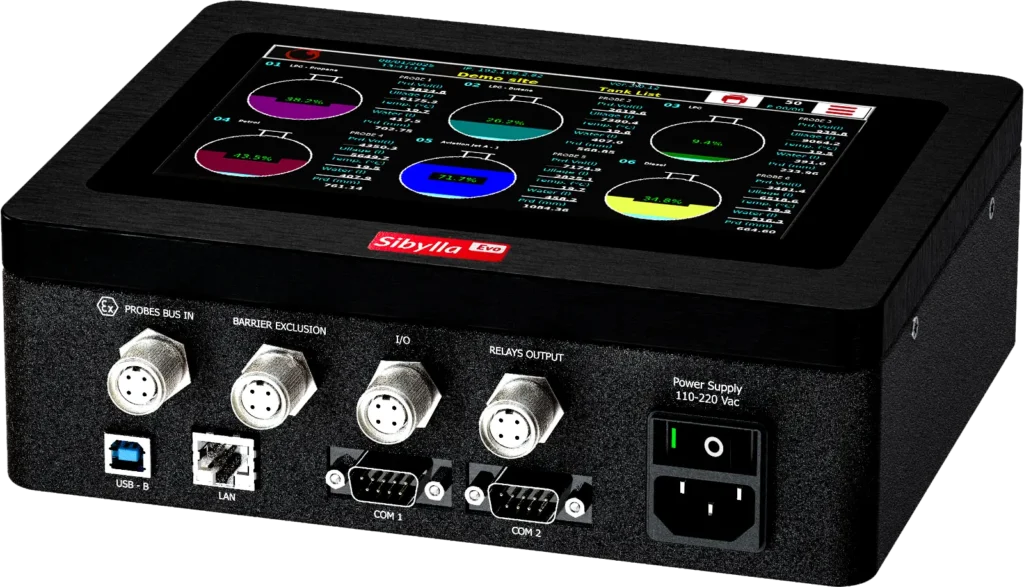

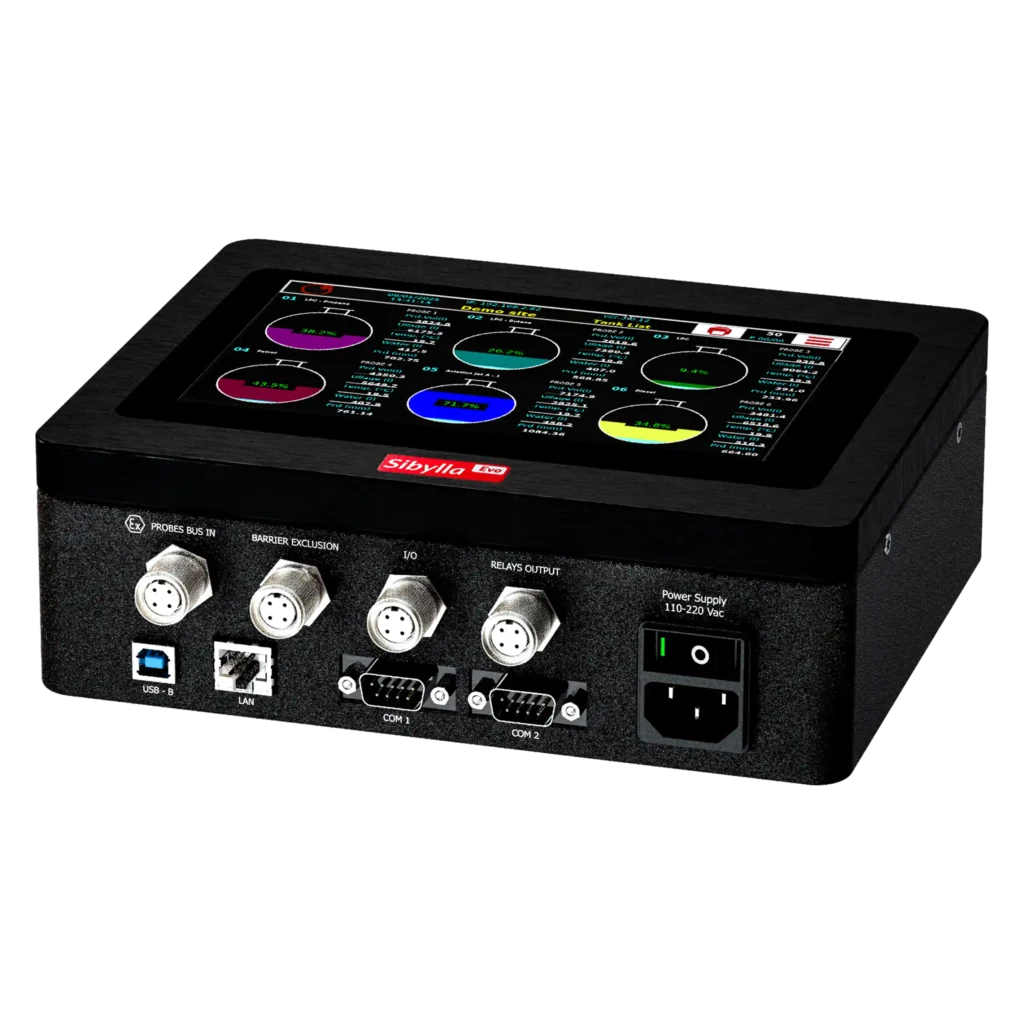

Sybilla EVO

Up to 36 tanks
Integrated intrinsically safe barrier (8 tanks)

Marking ATEX: TÜV IT 24 ATEX 0231 X

II (1)G [Ex ia Ga] IIB

Stock Management Console

Sybilla EVO is a Linux-based stock management console designed to monitor up to 36 tanks with high precision and operational reliability. Powered by a Cortex ARM A7 processor, it supports major fuel dispenser communication protocols and provides automatic reconciliation, leak detection (static and dynamic), tank calibration, and shift management. Equipped with a 7” TFT color touchscreen, IP41 enclosure, and full web connectivity for remote monitoring and configuration, Sybilla EVO ensures complete control of tank levels, volumes, temperature, ullage, events, and alarms within a robust and scalable system architecture.

General Specifications

Web connection capability for remote monitoring and configuration.

Integrated Intrinsecally Safe Barrier (8 tanks)

Marking ATEX: TÜV IT 24 ATEX 0231 X

II (1)G [Ex ia Ga] IIB

[1]

Key Features

• Stock management console for up to 36 tanks
• Linux operating system
• Cortex ARM A7 CPU at 528 MHz with 512 MB DDR3L memory
• Interfaces with major communication protocols
(Gilbarco, DOMS, Dresser Wayne, Tokheim, etc.)
• Automatic reconciliation
• Leak detection (static or dynamic)
• Automatic tank calibration
• Shift management

• Delivery detection

[2]

Electrical Features

• Power supply: 100–230 Vac
• RS485 Fieldbus wiring
• 8 programmable input channels for digital I/O or 4–20 mA two-wire analog input
• 4 programmable SPDT alarm outputs, 125 Vac
• 2 RS232 ports for POS and/or serial printer
• 1 USB port
• 1 Ethernet port

[3]

Main features

• Large 7” TFT color touchscreen graphic display
• IP41 protection-rated enclosure
• Records deliveries, trends, events, and alarms

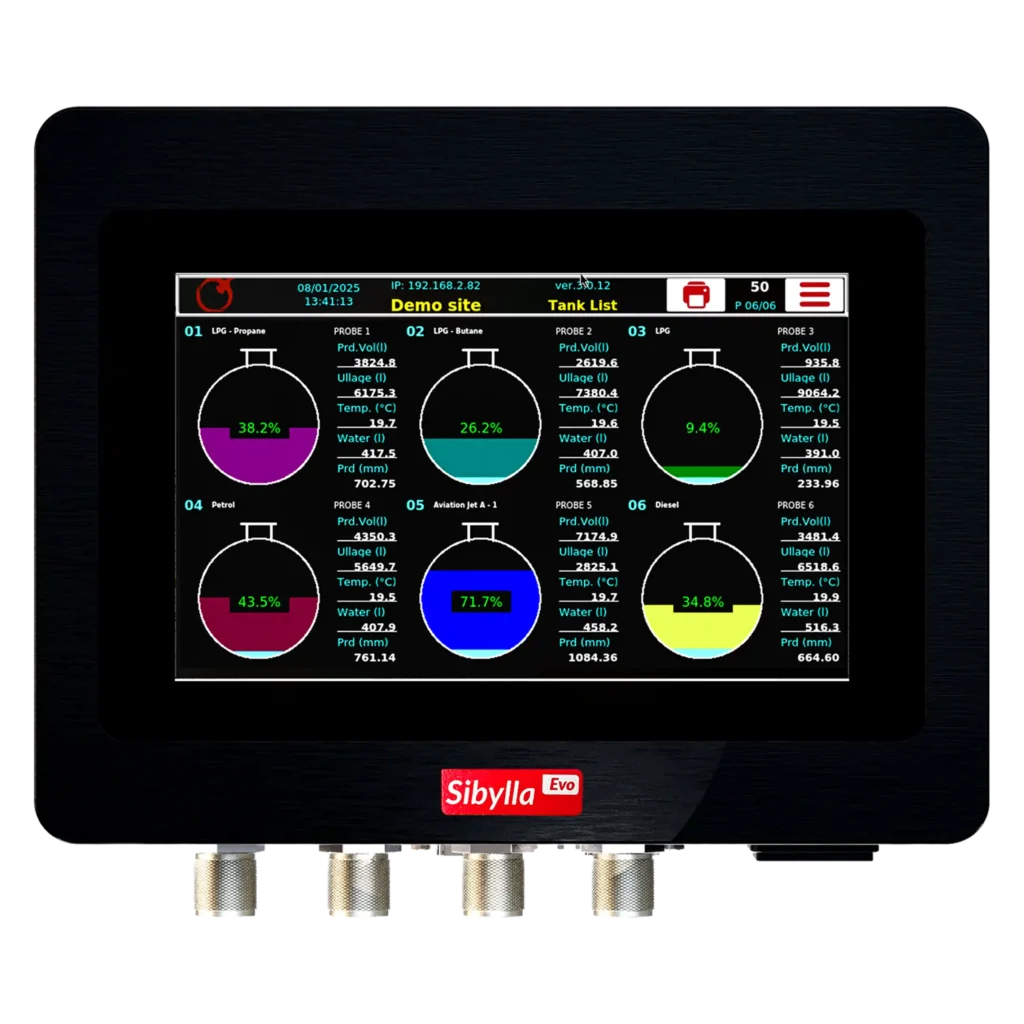

The display shows:
• Product level / mm
• Water presence detection
• Actual volume and temperature-compensated volume at 15 °C in liters
• Average product temperature in the tank
• Ullage volume in liters

Accessories for SYBILLA EVO

Marking ATEX: TÜV IT 24 ATEX 0209 X

II (1)G [Ex ia Ga] IIB

Safe Link

Active intrinsically safe barrier for Zone 0.

• Intrinsically safe galvanic isolation barrier, suitable for powering bus circuits in Zone 0 (1G)
• Circuit protection and current line stabilization
• Supports connection of up to 8 probes per barrier
• Power supply: 12 V (±10%)
• RS485/RS232 communication interface

Marking ATEX: TÜV IT 24 ATEX 0231 X

II (1)G [Ex ia Ga] IIB

Safe Pass

Passive intrinsically safe barrier for Zone 0.

• Intrinsically safe barrier suitable for powering probes installed in Zone 0 (1G)
• Supports connection of up to 8 probes per barrier
• Power supply: 12 V (max 15.0 V)

Marking ATEX: TÜV IT 24 ATEX 0231 X

II (1)G [Ex ia Ga] IIB

EOS

• Wall-mounted printer
• Connectivity via RS232 or USB port
• High-speed printing, 200 dpi
• Paper width: 58 mm – roll Ø 50 mm
• Power supply: 220 Vac
• Internal memory: 4 MB
. Font internazionali disponibili
. Sensori di temperatura testina e presenza carta
. Conformità UL CE FCC
. Ampio intervallo di temperatura: -20 ÷ +70 °C

Features

Hardware

Software

Deliveries
Leakages
Gilbarco interface
Reconciliation
Autocalibration
Shifts
Email notification
USB/RS-232 printing
500 strap table point
Dispensers mngmt.
Backup/restore
Remote update
Web interface

Sybilla

HW

SW

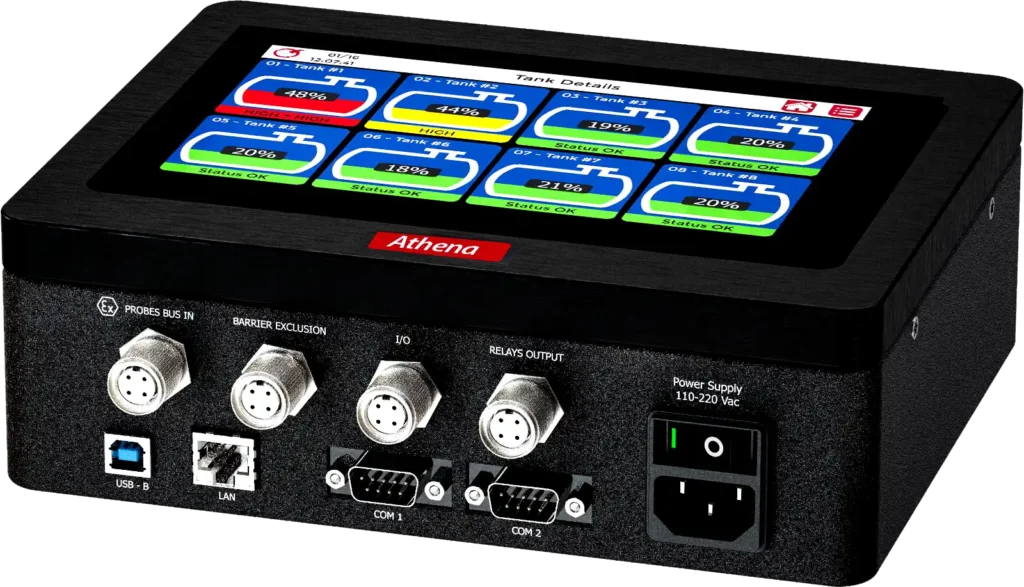

Athena

HW

SW

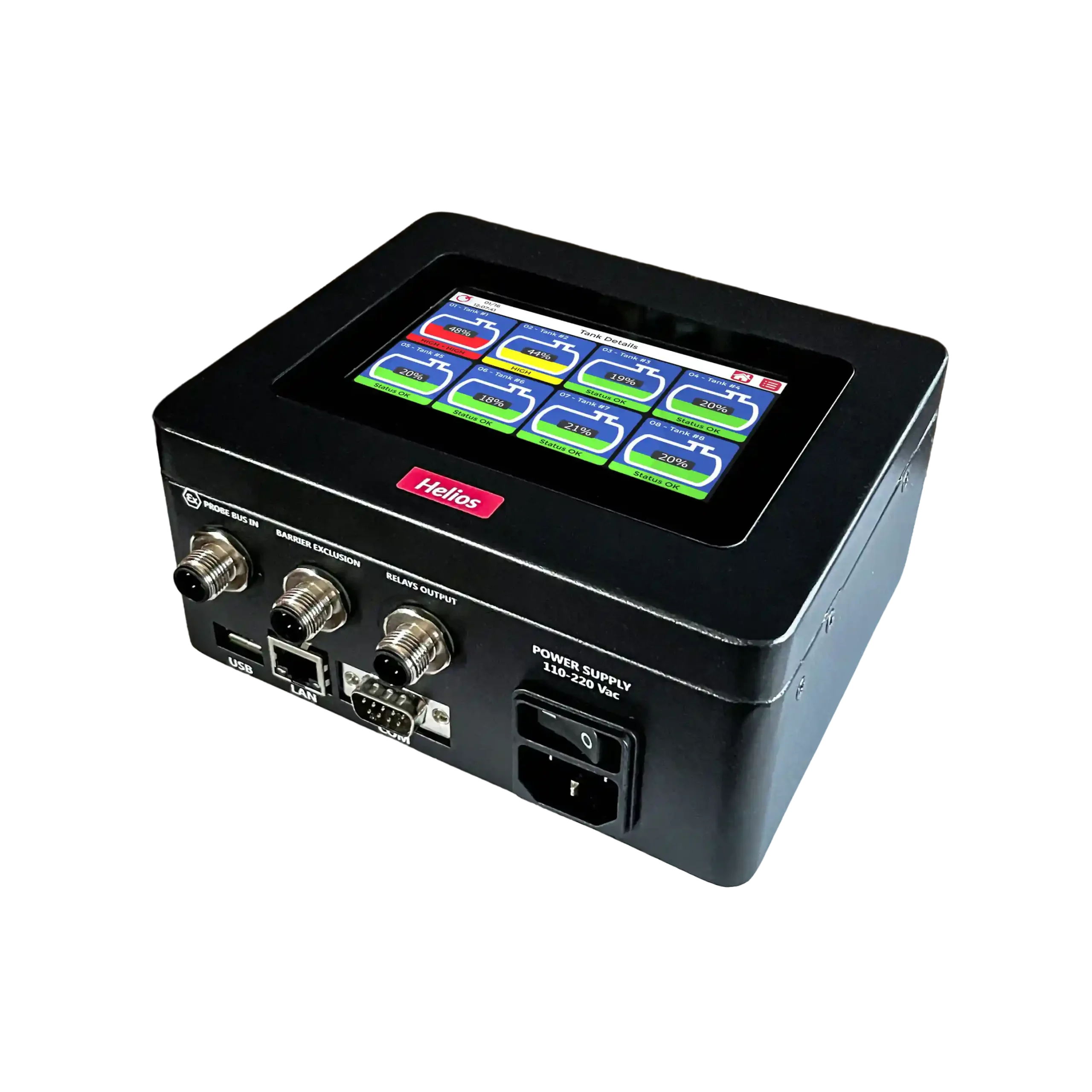

Helios

HW

SW

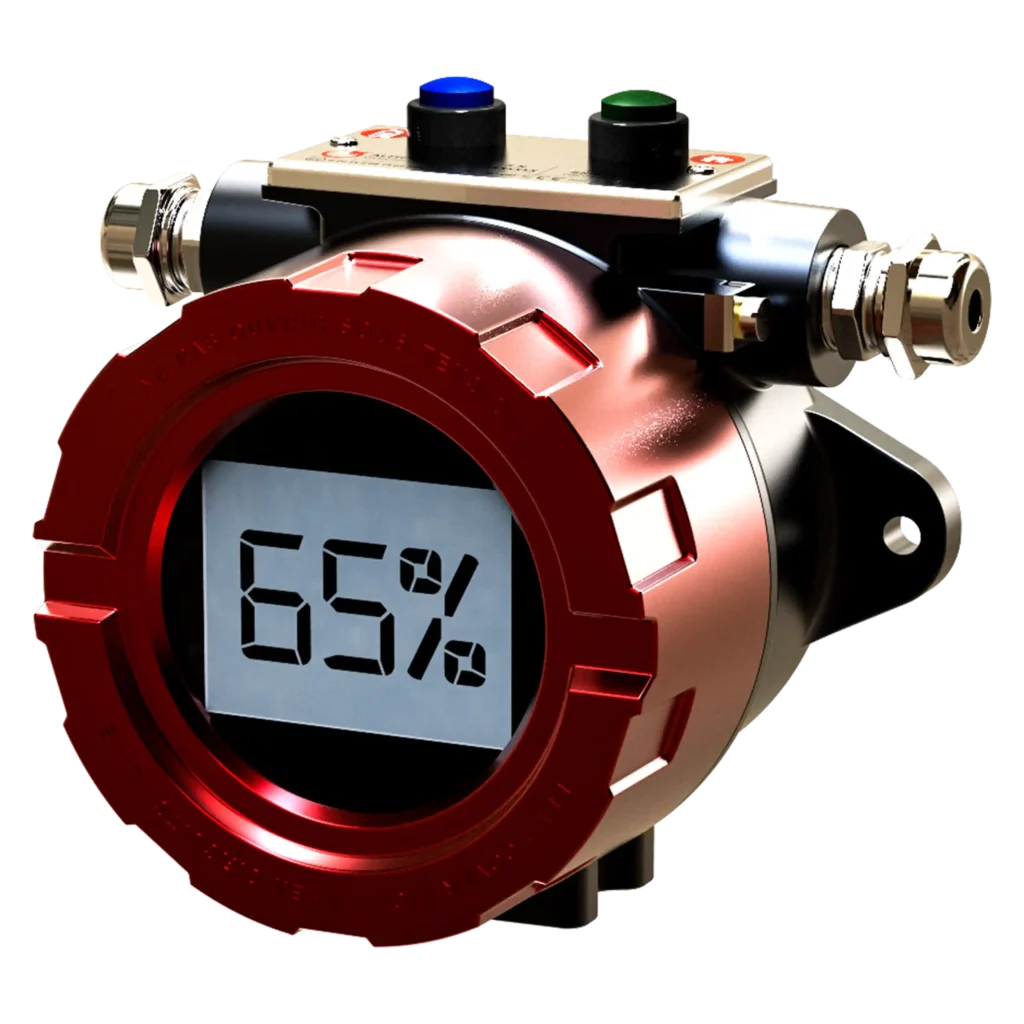

Mars

HW

SW

only: s501, i101, i201
200 strap table point
